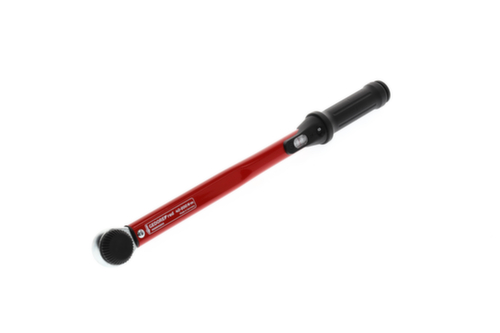

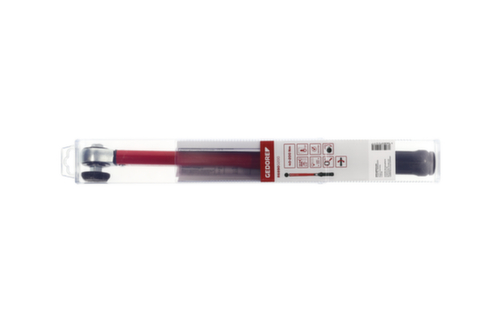

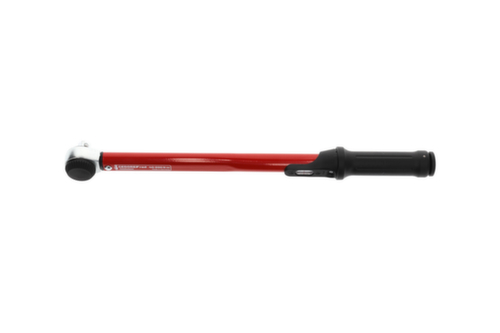

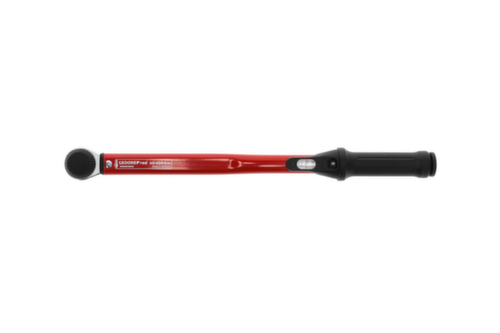

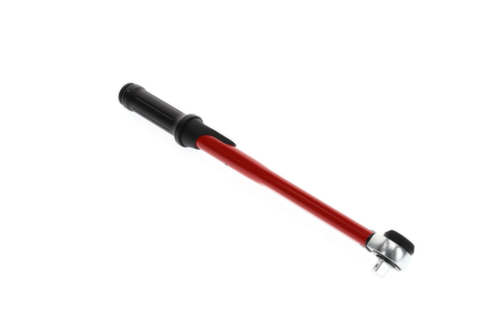

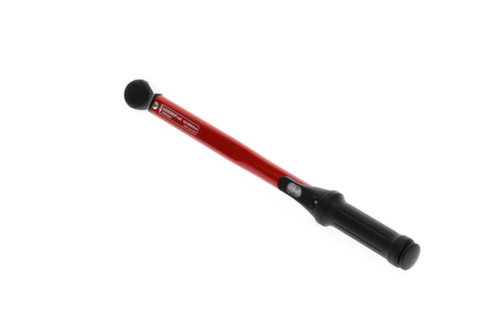

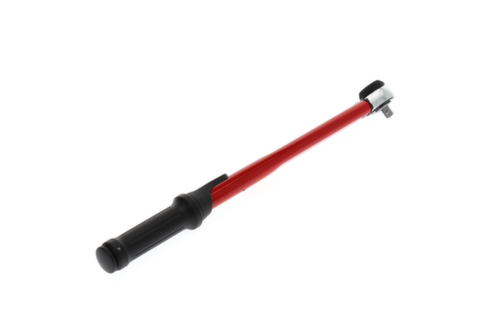

GEDORE R68900200 Drehmomentschlüssel 1/2" 40-200 N·m 485 mm
Art.-Nr.: A247054
{"data":[{"sku":"247054","prices":{"SalePrice":[{"gross":{"currency":"CHF","value":215.93},"minQuantity":{"unit":"PCE","value":1},"net":{"currency":"CHF","value":199.75},"priceQuantity":{"unit":"PCE","value":1}}],"ListPrice":[{"gross":{"currency":"CHF","value":254.04},"minQuantity":{"unit":"PCE","value":1},"net":{"currency":"CHF","value":235},"priceQuantity":{"unit":"PCE","value":1}}]}}]}
{"listPrice":235,"salePrice":199.75,"discountPercent":15,"listPriceFormatted":"CHF 235.00","salePriceFormatted":"CHF 199.75","discountPercentFormatted":"15%","isSinglePrice":true,"scalePrices":[],"quantity":1,"currency":"CHF"}
CHF 235.00
CHF 199.75
Kostenlose Lieferung
Lieferzeit: 5-7 Werktage
Die angegebenen Lieferzeiten gelten für den Versand innerhalb der Schweiz. Lieferzeiten für andere Länder können abweichen.

Kurzbeschreibung
Produktkonfiguration
Technische Daten
Produktbeschreibung
Technische Daten
Antriebstyp/Antrieb
Einsteckvierkant mit Drehknopf, geriffelt
Werkzeugtyp
Schraubwerkzeug
Auslösemechanik
Kurzwegauslösung
Gesamtbreite [mm]
52 mm
Präzision +/-
+/- 3 %
Rückschwenkwinkel
7,5 Grad
1000 V isoliert
nein
Anzahl Zähne
48
Skalentyp
Mono
VDE zertifiziert
nein
Drehmoment (max.) [N·m]
200 N·m
Antriebsvierkant [zöllig]
1/2 Zoll
Gesamthöhe [mm]
45 mm
Netto-Gewicht [kg]
1,42 kg
Skaleneinteilung
10
Anzugsrichtung
links und rechts
Nonius Nm
1 N·m
Prüfzertifikat
DIN EN ISO 6789-2:2017
Zielgruppen
Automotive|Industrie|Bau- und Nutzfahrzeuge|Verbraucher|Energie|Maschinenbau|Werkstatt|Service|Agriculture|Oil & Gas|Versorgungsunternehmen
Gesamtlänge [mm]
485 mm
Inhalt (Anzahl Stück)
1
Kopfbreite 1 [mm]
46 mm
Abstand Gehäuse - Vierkantmitte
22 mm
Antriebsvierkant [metrisch]
12,5 mm
Ausführung
Einsteckvierkant mit Drehknopf, geriffelt
Sicherung Abtriebsvierkant
Kugelsicherung
Einsatzbereich
Montage|Wartung und Instandhaltung
Kopfhöhe 1 [mm]
35,9 mm
Drehmoment (min.) [N·m]
40 N·m
Kalibrierlänge
394,2 mm
REACH Registrierung vorhanden
nein
Festeinstellung
nein
Drehmomentbereich (min./max.) [N·m]
40-200 N·m
Gewicht
1,515 kg
Produktbeschreibung
Einsatz: Kontrollierter Schraubenanzug von 40 bis 200 N·m, Wiederholgenau und präzise, Deutlich hör- und fühlbare Drehmomentauslösung, Rechtsanzug und Linkanzug durch Umstecken des Pilzkopfs / Durchsteckvierkants, Ausführung: Verstellbarer Drehmomentschlüssel mit Vierkantantrieb und integrierter Knarrenfunktion, Vierkantantrieb mit Knarrenmechanismus, Die Drehmomenteinstellung erfolgt durch Drehen des Handgriffs, Fixierung des eingestellten Wertes erfolgt über die Verriegelung am Griffende, Sehr gut ablesbare Skala mit Lupe für N·m, plus 1/10 Skala für eine exakte Einstellung, Auslösegenauigkeit: +/-3 % Toleranz vom eingestellten Skalenwert, Lieferumfang: Drehmomentschlüssel mit Prüfzertifikat nach DIN EN ISO 6789, BetriebsanleitungSie haben Fragen?
